Anchorfall

Global Illumination using DDA + a heat spread algorithm.

First, a conduction mask is generated, which contains information about obstacles and their transparency.

Then, a grid-aligned DDA raycast is performed on the texture to create the direct light information. This step also gathers shadow information.

Lastly, a heat spread algorithm with a 3x3 neighborhood kernel is used to spread the direct light information and create our indirect light texture.

Blur is then applied, and the GI information gets merged with Unity's light information to create the end result.

Emissive textures follow a different path, with their light information being injected directly in between the DDA and heat spread. Since the heat-spread algorithm scales with texture size and iterations, we can add massive amounts of indirect light contributors without paying a hefty performance fee.

The system has controls for GI contribution, GI resolution, various heat spread tweaks to make light go further or contribute more and all shadows (including Unity lights) are quantized to a pixel grid.

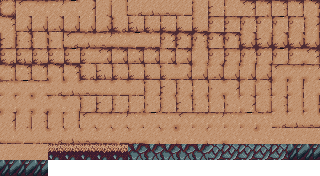

It's subtle, but this system is pretty complex and involved. The game implements a variation of the BlobTileset. A 17-tile tileset is drawn containing the basic corners, inner corners, borders, and full tiles. Then, a tile generator slices these into quadrants and isolates which features each tile has. Then, we generate the full set of 47 tiles from these features and map them to the 256 possible combinations. The system also supports tile variations, so if we draw 3 border_left tiles in our initial tileset, we can use those 3 distinct features to generate more variations of the tiles that use them:

The game is actually 3D, so after performing tile selection, we dynamically generate a mesh and add the individual faces to it, performing face culling based on neighbor data. All of this is rendered directly in ECS with BRG.

The tile selection is deterministic and seeded, and the whole process is Burst-compiled.

To leverage ECS rendering in the game, we built a pipeline that automatically converts sprites into meshes. This has the added benefit of being able to run shaders on the sprites during the opaque phase, which simplifies lighting a fair bit.

The pipeline supports static sprites, sprite sheets, and animated sprites.

Baking systems handle registration of textures and meshes, while an accompanying runtime system handles animations.

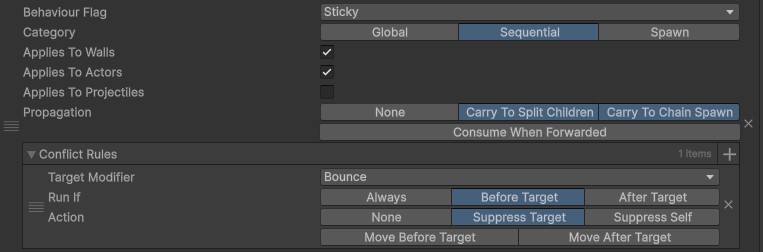

A robust spell system was implemented to allow for very flexible spell building. A set of behaviour modifiers is available (e.g. Bounce, Sticky, Split, Pierce, etc) that can be applied to spells. These modifiers interact with one another through a conflict resolution system. Many can co-exist, but for the ones that cannot (in the example, bounce and sticky), we have a comprehensive conflict resolution system that is able to control order of execution or suppress behaviours. This system is not complete, but was built in an extensible way to allow for change.

This system is fully Burst-compiled and uses a "pre-compilation" approach, where we calculate projectile interactions in advance and store each possible "action" the projectile may trigger in BlobAssets: a global (orderless) and a sequential one. Each projectile keeps an index (head) of where in the buffer it currently is when an event happens and increments this counter during its lifetime.

Doing it this way allows us to map complex interactions, like projectiles first bouncing and then splitting. It keeps the projectile entities lean and is deterministic by nature.

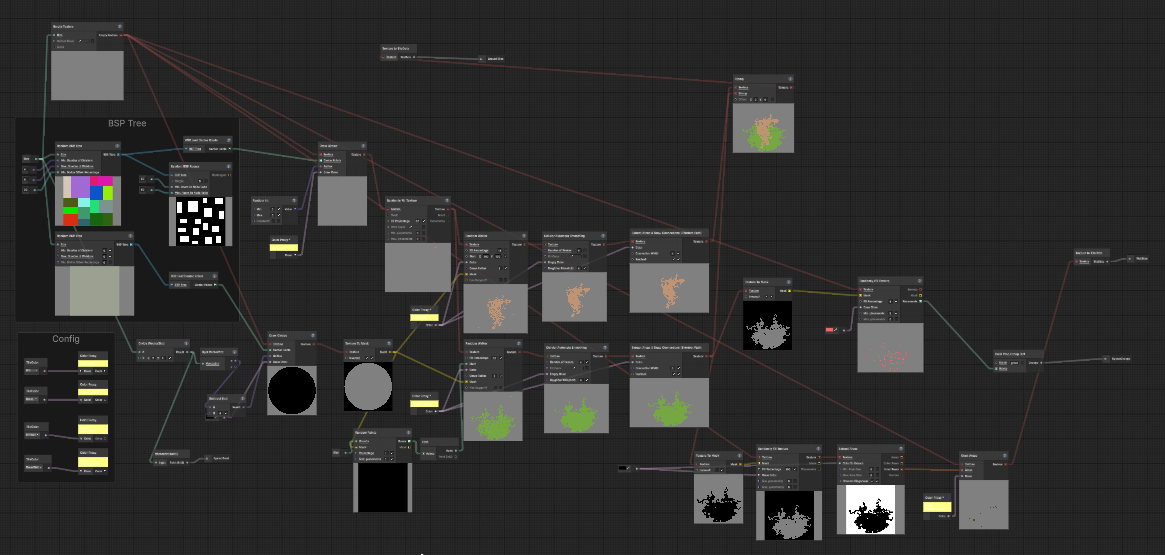

Forgive the spaghetti. Map generation is built on top of Map Graph and allows us to define rules and morph terrain using graph nodes. It supports various cellular automata functions, noise types, BSP trees, and more.
